Synergy 03-12 Dodge 3'' Pre-Run Suspension System

$2,315.00
SKU: SYN-DPRSS
Qty:
Vehicle Application:
Eligible for FREE Shipping

Synergy 03-12 Dodge 3" Pre-Run Suspension System

Synergy Suspension 8Lug Free Shipping

Engineered and manufactured in the U.S.A, the Pre-Run System is available for 03-13 Dodge 1500 Megacab 4x4, 2500 4x4, 3500 4x4 and will lift the truck 3.0". The Synergy Pre-Run Suspension System accommodates up to 37" tall tires.

Features:

  • Progressive wound coil spring manufactured using the latest in CNC hot winding technology for optimized on and off road performance
  • Heavy duty sway-bar links for the correct sway bar geometry and maximized stability
  • Heavy duty rear shackles provide a minimal amount of lift while keeping the rear driveline angles correct
  • Synergy double adjuster sleeve & pinch bolt assembly allows for adjustment of control arm and track bar length without removal
  • Heavy duty front track bar made from high quality 1-3/8" 1045 solid tubing allows centering of front axle when running a suspension lift
  • Lower adjustable control arms are manufactured from high quality crush resistant 1.75" X .188" Wall 1026 DOM tubing
  • Upper adjustable control arms are manufactured from high quality crush resistant 1.50" X .156" Wall 1026 DOM tubing
  • Adjustable control arms incorporate the tried and true Johnny Joints® for paramount performance & durability
  • Rear add-a-leaf pack is a progressive 5 leaf design that replaces the factory overload spring for improved ride quality both on and off road
  • Cam Bolt Eliminator Kit takes the place of stock control arm cam bolts when upgrading to adjustable control arms
  • Suspension components features an abrasive-resistant powder coat finish for maximum durability and corrosion resistance

Applications:

  • 2003-2013 Dodge 2500 4x4
  • 2003-2012 Dodge 3500 4x4
  • 2006-2008 Dodge 1500 Megacab 4x4

Kit SKUs/Part #s:

  • PPM-8502-10 03-09 Dodge 1500 Mega Cab 4x4/2500/3500 3" Pre-Run Suspension System (Gas)
  • PPM-8502-11 03-09 Dodge 1500 Mega Cab 4x4/2500/3500 3" Pre-Run Suspension System (Diesel)
  • PPM-8502-12 10-13 Dodge 2500/3500 3" Pre-Run Suspension System (Gas)
  • PPM-8502-13 10-13 Dodge 2500/3500 3" Pre-Run Suspension System (Diesel)

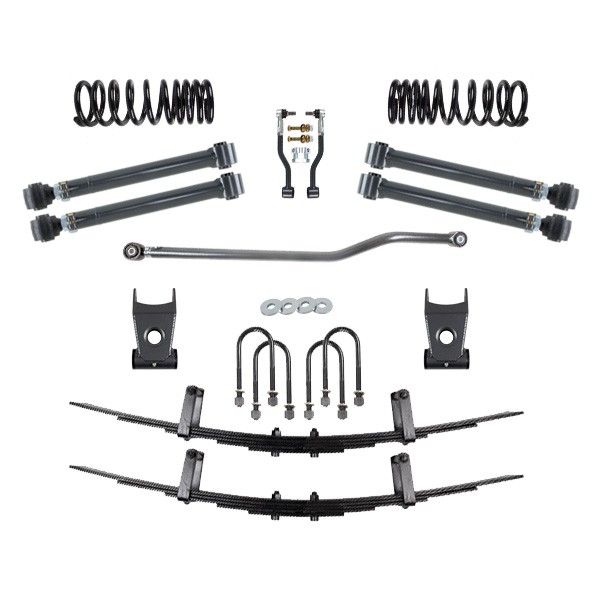

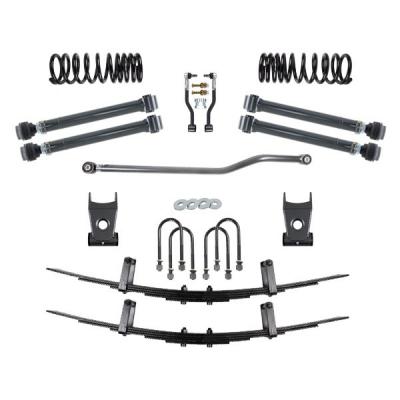

Kit Include:

  • 8515-01 - Synergy Front Sway Bar Links
  • 8555 - Synergy Front 3.0" Coil Springs
  • 8566-01 - Synergy 1.0" Lift Rear Shackles
  • 8550-01 - Synergy Adjustable Front Track Bar
  • 8551 - Synergy Adjustable Front Lower Control Arms
  • 8553-01 - Synergy Adjustable Front Upper Control Arms
  • 8516 - Synergy Rear Add-A-Leaf Pack
  • 8565 - Synergy Cam Bolt Eliminator Kit

Recommended Components:

  • FOX-985-24-046 - Fox Steering Stabilizer

Note: Due to the additional weight of megacab truck configurations, we recommend all gas megacab trucks use Heavy Duty (HD) front coil springs instead of Light Duty (LD) front coil springs. LD front coil springs will give less lift than advertised
When using stock Dodge wheels, we recommend a 1.5" wheel spacer

Part Numbers

  • 8502-10 | 03-09 2500/3500 4X4 Gas
  • 8502-11 | 03-09 2500/3500 4X4 Diesel
  • 8502-12 | 10-13 2500/3500 4X4 Gas
  • 8502-13 | 10-13 2500/3500 4X4 Diesel

Made in the USA
