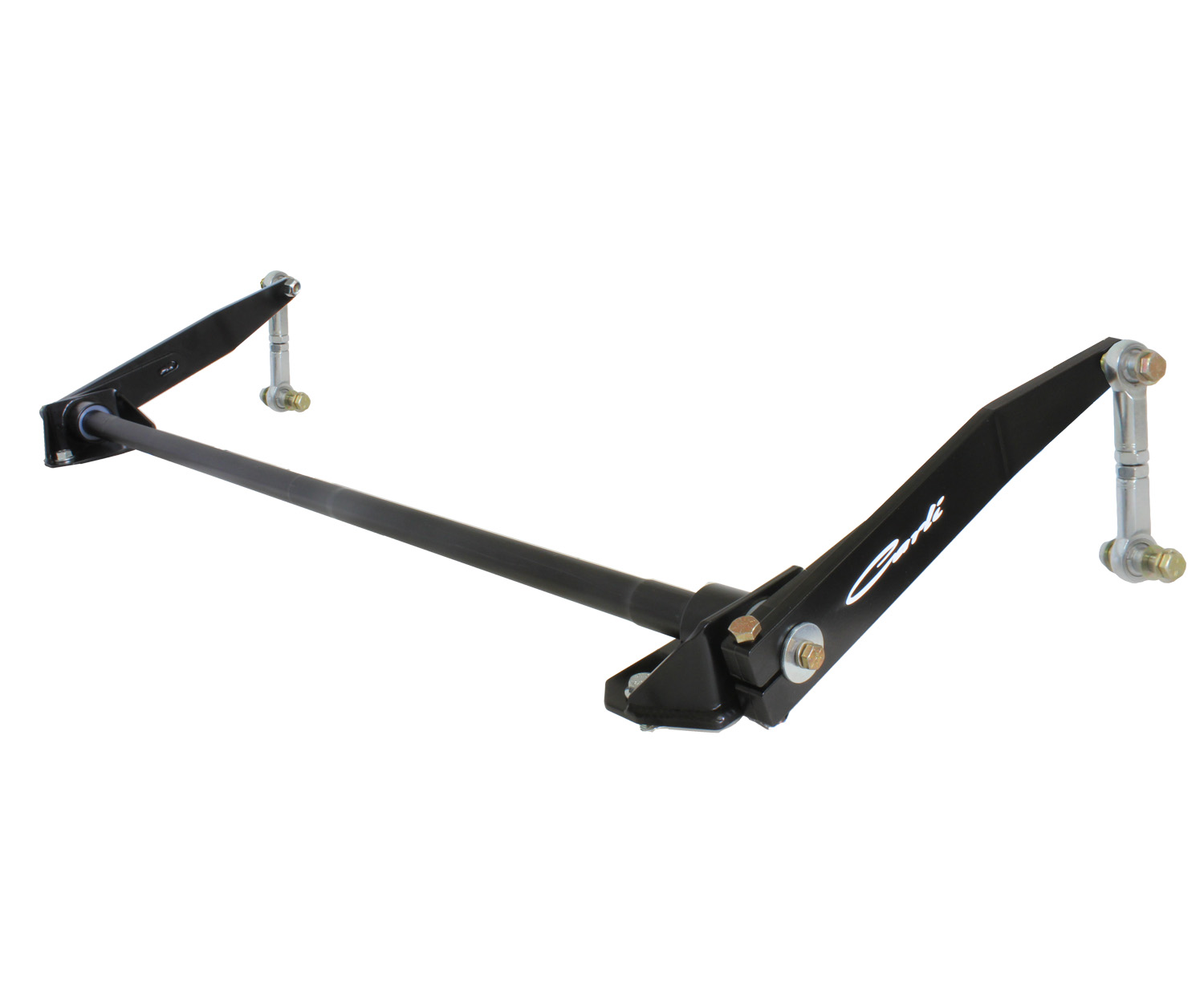

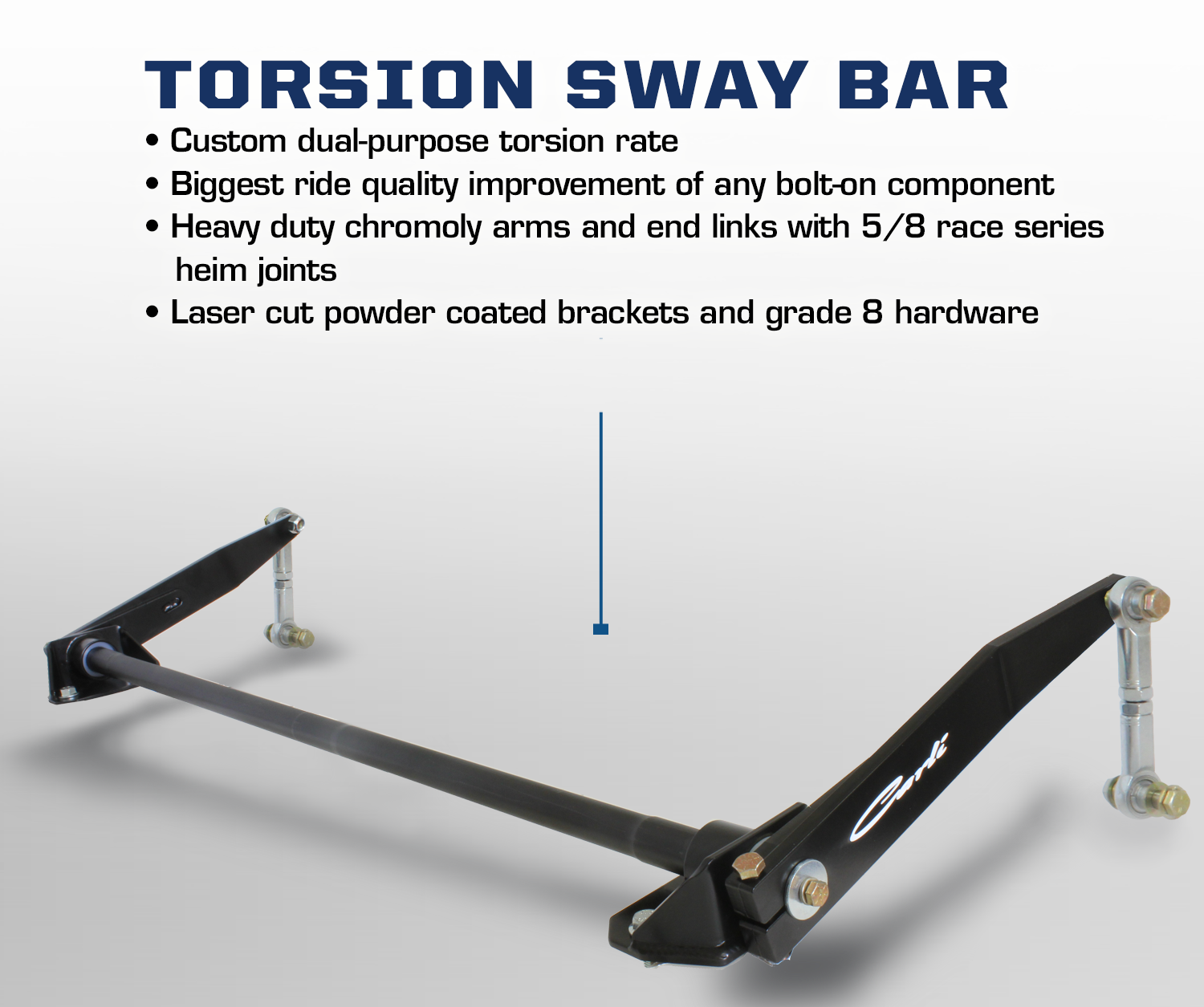

Carli Torsion Sway Bar
Dodge Ram Suspension Sway Control
The single biggest improvement of ride quality out of the entire line of Dodge Ram Components. The OEM sway bar's torsion rate is extremely high and it almost marries the front axle to the chassis. You notice this the most in low speed offset bumps, such as crossing speed bumps one tire at a time and entering or exiting a driveway at an angle where you feel an abrupt side to side rocking of the entire rig. The first thing you feel with Carli Sway Control is a "detached" feel of the axle and chassis... finally they are allowed to work independently of each other without undo movement.
High speed performance is greatly improved and you instantly feel that the back end of the truck comes around much better which gives you drive out of corners. If you feel a harsh response of your front end on low speed activity, just think what it's doing during high speed. The factory sway bar gives the truck a lazy feel in corners while you still experience body roll. With a lighter torsion rate and adjustable arm design, the high speed cornering of your Dodge Ram will be a natural cycle of weight exchange, followed by the suspension "setting" in the corner.
As of 3/12/2012 every Sway Bar kit now comes with extreme duty 5/8" F.K. rod ends for maximum longevity and off-road performance.
DODGE RAM FITMENT GUIDE
- 03 - 12 2500 / 3500 4x4 with 0-3" of lift*
- 06 - 09 1500 Megacab 4x4 with 0-3" of lift*
- No Power Wagon Applications

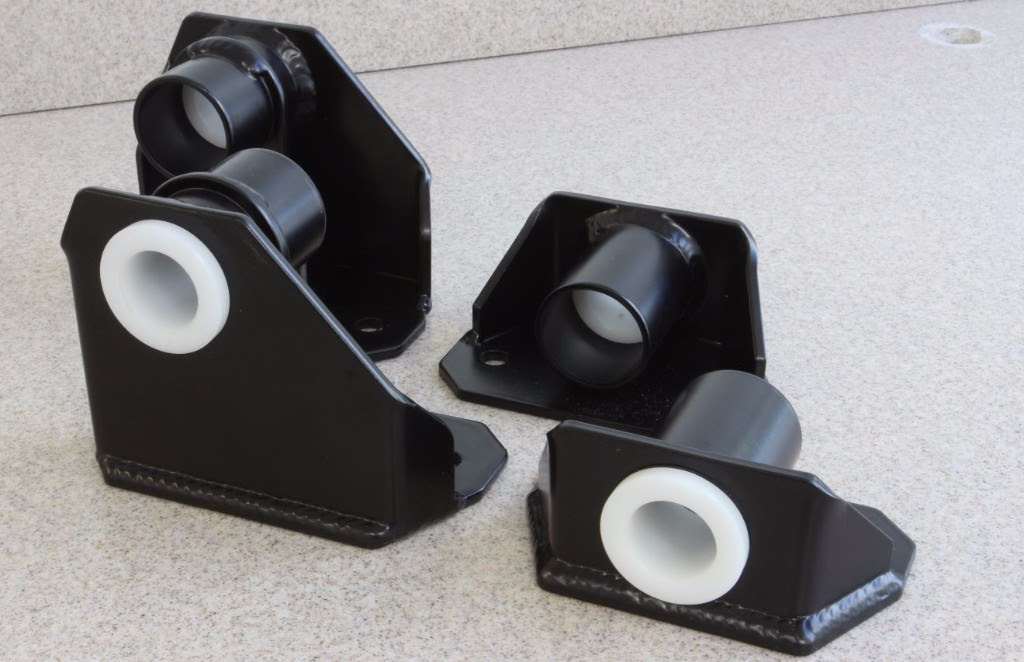

*this sway bar will also work on trucks with 6" of lift when combined with Carli's Dodge Sway Bar Relocation Brackets.
When used in 3" applications, this sway bar will interfere with the BD Diesel Steering Brace. When used on 6" systems in conjunction with the Carli Sway Bar dropbrackets this sway bar will clear the BD Brace.
SPECIFICATIONS
- 4130 Chromoly Construction
- 5/8" FK Rod Ends
- Easy Maintenance
- Bolts On In Minutes
